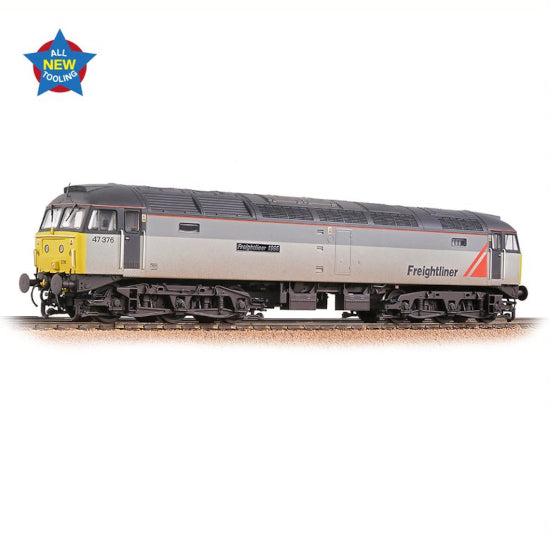

35-430 Class 47/3 47376 'Freightliner 1995' Freightliner Grey (Weathered) Bachmann Branchline

OO Scale

Era 9

Weathered Freightliner Grey livery Named 'Freightliner 1995' Running No. 47376 Etched Nameplates included Equipped with a Plux22 DCC Decoder Socket - recommended Decoder item No. 36-570 Length 255mm

DETAIL VARIATIONS SPECIFIC TO THIS MODEL Plated Headcode Panel at No. 1 End and Sealed Beam Marker Lights at No. 2 End Cut-Cab Locomotive Single Arm Windscreen Wipers High Intensity Headlight Round Buffers Checker Plate Kickplate below Cab Door Full Cab Roof Vents Serck Radiator Grilles Smooth Exhaust Panels Plated Clayton Boiler Water Tanks Removed NRN Aerials Plated Bogie-mounted Cab Steps Slow Speed Speedo Drive

MECHANISM: Five pole, twin shaft motor with two flywheels providing drive to both bogies All axle drive Electrical pickup from all wheels Separate metal bearings fitted to each axle Diecast metal chassis block and bogie towers Diecast metal gearboxes, with gearing arranged for prototypical running speeds and haulage capabilities 16.5mm (OO gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing Detachable coupling pockets to NEM362 standards fitted to each bogie Designed to operate on curves of second radius (438mm) or greater

DETAILING: Bogies constructed from multiple components featuring full relief detail Rotating radiator fans, driven by an independent motor and gearbox, operated via a DCC function, or randomised when operated as part of the sound project on DCC and Analogue control (SOUND FITTED DELUXE models only) Tinted windscreen glazing (SOUND FITTED DELUXE models only) Separately applied metal detail parts, including grab handles, windscreen wipers and etched fan grilles Sprung metal buffers Each model supplied with a full set of decorated, model-specific bufferbeam pipework and accessory parts LIGHTING: Directional lighting, switchable on/off at either end on DCC or Analogue control Cab lighting*, assigned to two DCC functions for separate switching of each Separately switched Engine Room lighting* (*when used on DCC) Authentic light colours and temperatures selected for each model based on era and application DCC: Plux22 DCC decoder interface SOUND: Two quality speakers employed for optimum sound reproduction, fitted to every model as standard ESU Loksound V5DCC Sound Decoder fitted to SOUND FITTED and SOUND FITTED DELUXE versions Sound files produced specifically for the Bachmann Branchline Class 47 using recordings from real locomotives SOUND FITTED and SOUND FITTED DELUXE models operate on DCC and Analogue control as supplied. On Analogue, an authentic engine start up sequence, including the momentary dimming of all lights during engine start up, and running sounds are produced when power is applied LIVERY APPLICATION: Authentic liveries applied to all models Multiple paint applications employed on each model using BR specification colours Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours CLASS 47 HISTORY Towards the end of the 1950s, British Railways began planning a new fleet of diesel locomotives and after investigating several prototypes, BR decided to place an order with Brush Engineering for 20 locomotives during February 1961. The resulting design became the iconic Brush Type 4 Diesel locomotive, a practical, versatile design with a very distinctive cab. Powered with a Sulzer engine and initially rated at 2,750hp, the locomotive could achieve a top speed of 75mph with a tractive effort of 55,000lb. Building commenced in January 1962 and the first locomotive No. D1500 appeared in late September of the same year with test runs on the London Midland Region and Western Region. The design was a success and BR went on to order a total of 512 with continuous production through to early 1967, forming the largest single class of main-line diesel locomotives in the UK. During this time and subsequent years, several variations appeared with an increase in speed and tractive effort to 95mph and 62,000lb respectively. Originally fitted with four character train reporting head-codes, these changed to marker lights, with the addition of high intensity lights and roof aerials in the late 1980s. Other variations involved the fitting of different types of steam heating boiler for early BR coaching stock, later replaced with electric train heating for use with modern rolling stock. The numbering system started with four figures but changed to five with the introduction of the TOPS coding system which saw the locomotives classified as Class 47 Diesels with variations such as 47/0, 47/2, 47/3, 47/4 and 47/7. By the end of the 1990s, half of the Class 47 fleet had been withdrawn or scrapped, 33 have been converted into Class 57 locomotives and several have been preserved, including the original No. D1500, now numbered 47401.
