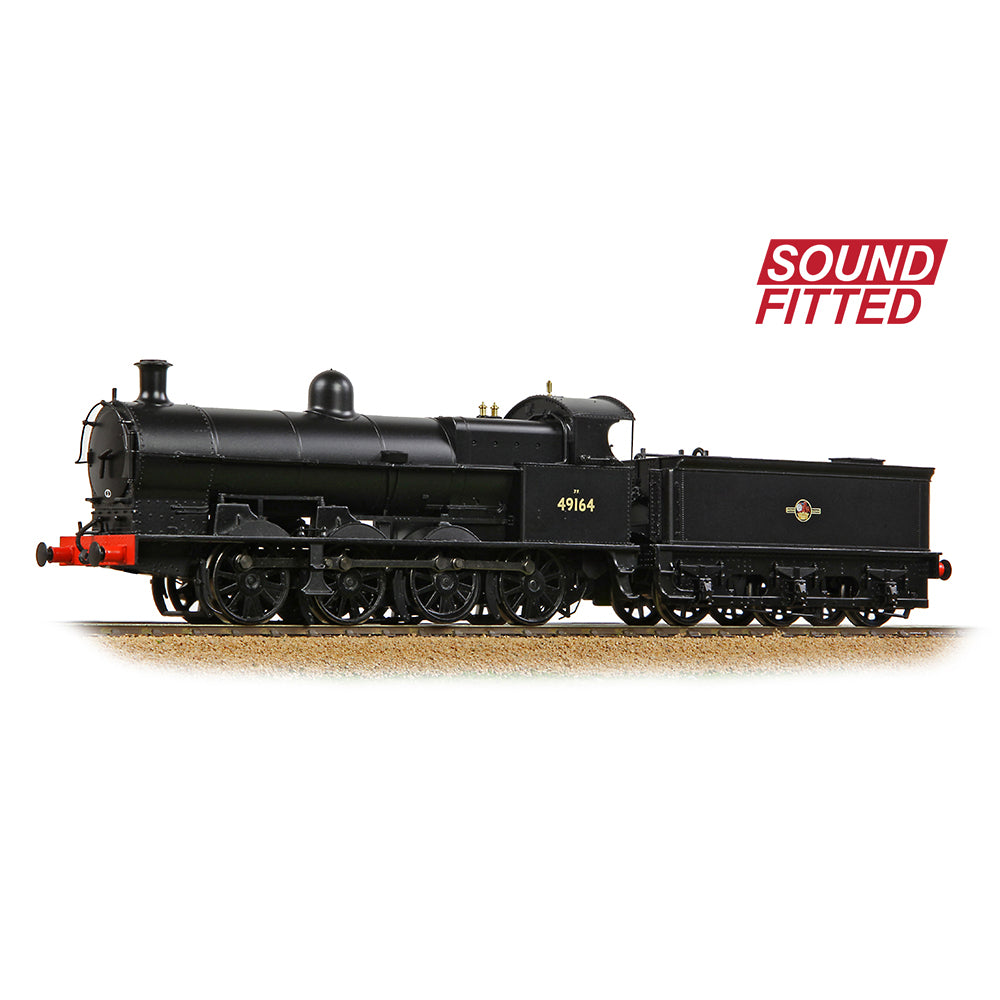

The London & North Western Railway (LNWR) was known as the Premier Line and one of its premier freight locomotives, in terms of power and ability at least, was the G2 Class, and their later equivalents, the G2As. This Bachmann Branchline model brings the G2A to OO Scale with a high fidelity rendition of the early-twentieth century powerhouse.

With an impressive level of detail and a high performance mechanism, the Branchline G2A is the complete package and now for the first time, this model is available with the option of SOUND FITTED.

The model employs a diecast running plate, along with further metal components to provide an impressive weight ensuring the model’s strength and power match its prototype’s. Meanwhile, those components produced in plastic are precision moulded, with details such as rivets and boiler bands crisply reproduced. Separate parts are then added to enhance the authenticity of the model further, from the metal handrails to the whistle and safety valves, each of which are turned brass. The smokebox door is hinged and can be posed open or closed, whilst within the cab, controls, dials and pipework are all moulded authentically and decorated accordingly.

The locomotive’s diecast chassis is enhanced with brake blocks, brake rigging and sandboxes with separate wire sandpipes. Driving wheels are cast to the correct LNWR pattern, whilst the third pair of driving wheels are flangeless, as on the real locomotives. Moving to the tender and the locomotive to tender drawbar is adjustable to suit individual layout conditions, whilst electrical connections are incorporated into the drawbar and a poseable fallplate is fitted to the tender – not only is this a prototypical feature but it serves to reduce the visual impact of any gap in this area which may be necessitated by operating conditions. The tender itself is finely moulded, with several separately applied details including the lamp irons, tank vents, fire tool holder and handwheels. A realistic coal load is included whilst the tender chassis includes brake rigging and metal wheelsets are employed.

Whilst there is little to complicate the black livery of this freight locomotive, the paintwork is applied to a high standard throughout, with the printed details, including the numberplate and cab dials, all reproduced and fully legible thanks to the specialist printing techniques implemented in the production of Bachmann models.



MODEL FEATURES:

• Bachmann Branchline OO Scale
• Era 5
• Pristine BR Black Late Crest livery
• Running No. 49164
• Twin Handle Smokebox Door Handle
• Adjustable Tender Drawbar
• Powerful 3 Pole Motor
• NEM Coupling Pockets
• Sprung Buffers
• Accessory Pack
• Speaker Fitted
• SOUND FITTED – Fitted with a ESU Loksound V5DCC 21 Pin DCC Sound Decoder – See below for the function list
• Length 231mm (over couplings)



SOUNDS:

F1 - Sound - On / Off

F2 - Brake (Non-Latching)

F3 - Cylinder Drain Cocks

F4 - Whistle (Playable)

F5 - Normal Load / Heavy Load

F6 - On - Firebox Door Opening / Off - Firebox Door Closing

F7 - Injectors

F8 - Whistle

F9 - Flange Squeal (Speed Related)

F10 - Shovelling Coal (F6 must be On to activate this function)

F11 - Blower

F12 - Hand Brake (locomotive will not move with the Hand Brake applied)

F13 - Water Tank Filling

F14 - Coupling/Un-Coupling Clank

F15 - Safety Valve

F16 - Guard’s Whistle & Driver’s Response Toot

F17 - Coasting

F18 - On - Sounds Fade Out / Off - Sounds Fade In

F19 - Shunt Mode (Reduces Speed)

F20 - Acceleration/Deceleration Inertia Off

F21 - Volume Control (LATCH = Volume On/Off) or (TRIGGER = cycles 6 Volume Levels)

F22 - Rail Join Clatter

F23 - Rod Clank

F24 - AWS

Analogue Users: Normal-load running sounds, acceleration steam chuff sounds and any other automatic and randomised sounds can be enjoyed when using this model on analogue control (DC) straight from the box - these sounds will play automatically when power is applied!



CLASS G2/G2A HISTORY

The London & North Western Railway (LNWR) had an long history of producing 0-8-0 tender freight engines with the first prototype design emerging in 1892, and the last, the G2, appearing in the early 1920s. The G2 was a class of 60 brand new steam locomotives built between 1921-22, and with a boiler generating a pressure of 175psi, they were the most powerful design the LNWR had ever constructed. From 1924 onwards, the G2s were rebuilt with a belpaire boiler which improved performance even further. The entire class passed into BR ownership in 1948, with the first withdrawals beginning in 1959 and the last in 1964. One example, No. 49395 has been preserved as part of the National Collection, where it has been restored to running order.

Owing to a lack of suitable freight engines in the 1930s, the LMS decided to rebuild a significant number of LNWR-built G1s with the powerful 175psi belpaire boiler found on the G2 to create a new class of locomotives, the G2A. These rebuilds were virtually indistinguishable from the G2s and were very successful for the LMS, with over 300 examples rebuilt. Although some were downgraded back to a 160psi boiler and reclassified to G1, the majority of the class was inherited by British Railways in 1948, with the last four cut up in 1964.
