The LMS'Twins' Nos. 10000 and 10001 were the very first mainline diesel locomotives built in the UK and now, this pioneering pair is available in N scale as part of the Graham Farish range.

Built by the LMS, under BR ownership the 'Twins' were sent to the Southern Region between 1953 and 1955 for trails alongside the SR's own prototype diesels. To work on the SR, additional headcode lights and brackets were fitted to suit the Southern 6 position headcode system and these remained a feature of both locomotives thereafter, as displayed on this model of No. 10000 which is depicted in BR Green livery and with the late crests that were applied by BR from 1956. By this time the pair had returned to the Midland Region and were employed on duties across the region.

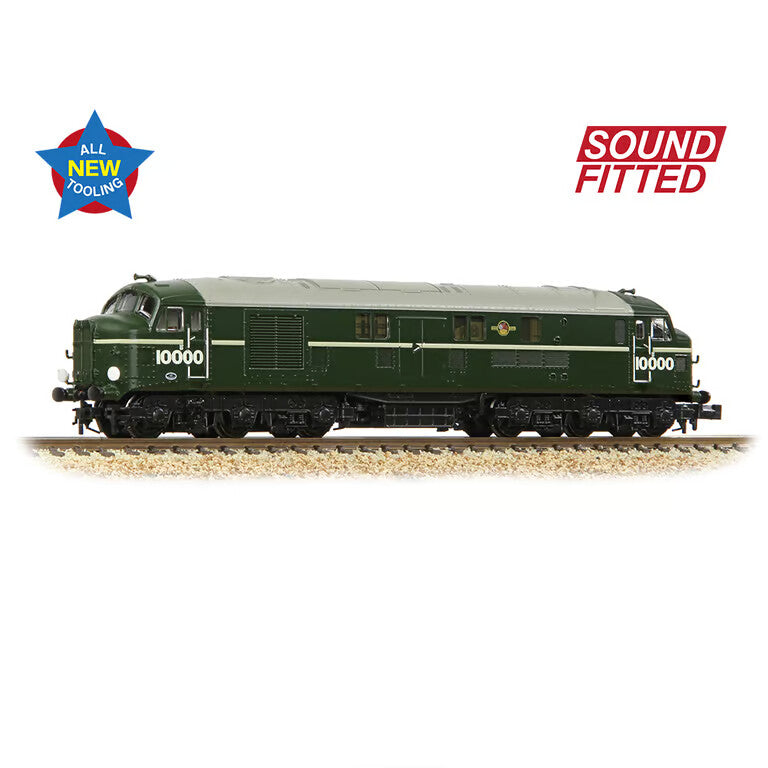

The Graham Farish model of No. 10000 is a highly detailed masterpiece in miniature, adorned with numerous separately fitted components to accurately capture the appearance of this pioneering machine. The livery application captures the splendour of the prototype, whilst engine room detailing has been replicated through the bodyside windows for the first time. Inside, the proven combination of a coreless motor and twin flywheels, driving both bogies and with all-wheel drive will provide enough power for any prototypical train. Supplied with SOUND FITTED, this model is supplied equipped with a DCC sound decoder which will play realistic sound effects straight out of the box whether you're running on analogue or DCC! Coupled with No. 10001, the LMS Twins will make the perfect addition to any BR-era layout.

• Graham Farish N Scale
• Era 5
• Pristine BR Green (Late Crest) livery
• Running No. 10000
• SOUND FITTED Fitted with a Zimo MS590N18 DCC Sound Decoder See below for the function list
• Length 127mm (over couplings)

DETAIL VARIATIONS SPECIFIC TO THIS MODEL

• Six Headcode Lights & Brackets at each end
• Bodyside Steps
• Water Scoops Fitted
• Modified Exhaust Panels (with vent grilles)

GRAHAM FARISH LMS 10000 & 10001 SPECIFICATION

MECHANISM:

• Coreless, twin shaft motor with two flywheels providing drive to both bogies
• All axle drive
• Electrical pickup from all wheels
• Separate metal bearings fitted to each axle
• Diecast metal chassis block
• Gearing arranged for prototypical running speeds and haulage capabilities
• 9mm (N gauge) wheels to NEM310 standards with authentic profile and detailing
• Removable coupling pockets to NEM355 standards fitted to each bogie
• Designed to operate on curves of second radius (263.5mm) or greater

DETAILING:

• Bogies constructed from multiple components featuring full relief detail, including separately fitted metal sand pipes
• Separately applied underframe and roof detail components
• Separate lamp irons fitted to each nose
• Detailed cab interior
• Each model supplied with a full set of model-specific bufferbeam pipework and accessory parts

LIGHTING:

• Directional lighting, switchable on/off at either end on DCC or Analogue control
• Passenger/Freight mode, switchable on Analogue control and with additional configurations available when used on DCC
• Cab lighting, switchable on/off (leading end, when used on DCC only)
• Authentic light colours and temperatures selected for each model based on era and application

DCC:

• Next18 DCC decoder interface

SOUND:

• Speaker installed in all models for optimum sound reproduction
• Zimo MS590N18 DCC Sound Decoder fitted to SOUND FITTED versions
• Sound files produced specifically for the Graham Farish LMS 10000/10001 using recordings from real locomotives
• SOUND FITTED models operate on DCC and Analogue control as supplied

LIVERY APPLICATION:

• Authentic liveries applied to all models
• Multiple paint applications employed on each model using BR specification colours
• Logos, numerals and text added as appropriate using multi-stage tampo printing using authentic typefaces, logos and colours

SOUNDS

F0 - Directional Lights - On/Off

F1 - Sound - On/Off

F2 - Brake

F3 - Single-Tone Horn

F4 - Horn (Playable)

F5 - Light Engine

F6 - Engine Idle

F7 - Speed Lock

F8 - Cold Engine Start (Turn on before F1)

F9 - Flange Squeal (Speed Related)

F10 - Dispatch Whistle with Driver's Response

F11 - Buffering Up

F12 - Coupling Up

F13 - Compressor

F14 - Spirax Valve

F15 - Cooler Group Fan

F16 - Primer Pump

F17 - Automatic Wagon Buffering

F18 - On - Cab Door Open / Off - Cab Door Shut

F19 - Fade All Sounds

F20 - Directional Lights Off No. 1 End (Fan End)

F21 - Directional Lights Off No. 2 End (Non-Fan End)

F22 - Alternative Passenger/Freight Headlight Modes

F23 - Cab Light (Leading End Only)

F24 - Station Ambience

F25 - Detonators (Speed Dependant)

F26 - Shunt Mode (Half Speed, No Inertia)

F27 - Volume Down

F28 - Volume Up

Analogue Users: Please note that normal load running sounds and any other automatic or randomised sounds will also operate when this model is used on analogue control (DC) straight from the box!

LMS 10000 & 10001 CLASS HISTORY

The LMS 'Twins' Nos. 10000 and 10001 were the first mainline diesel locomotives built in Great Britain. A joint venture between the London, Midland & Scottish Railway (LMS) and English Electric, the pair were first conceived in 1946. The body and chassis design was undertaken by the LMS's Chief Mechanical Engineer H. G. Ivatt, and English Electric provided the engine, electric systems and machinery. Construction of No. 10000 began at Derby Works in 1947 and the locomotive was outshopped in December of that year, days before Nationalisation of Britain's railways.

Both locomotives entered traffic in an eye-catching black and silver livery, with large chrome numbers fitted at each end of the bodysides, below the cab windows. The letters LMS were also applied in chrome to No. 10000, however No. 10001 did not enter service until mid-1948, with British Railways completing its construction, and so it entered traffic with neither LMS nor BR markings.

The locomotives worked both singularly and as a pair on the Midland Main Line and West Coast Main Line, hauling named expresses and lower key services, and venturing north of the border into Scotland. Interconnecting doors were fitted within the noses of each engine, allowing crew and personnel to move between the two in motion, but this feature was seldom used.

In 1953 the Twins were sent to the Southern Region, being fitted with an additional pair of marker lights and lamp brackets beforehand which made them compatible with the SR’s practice of using headcodes to denote both train types and routes. During a two year period on the Southern Region the Twins worked alongside the Southern's own diesel prototypes before returning to the Midland Region in 1955.

As prototypes, changes and modifications were made to the locomotives during the years and this included the fitting of water scoops to allow water for the steam heat boiler to be collected from troughs located between the rails 'on the move'. Ironically, in common with many early diesels, the performance of the steam heat boilers was woeful, and in colder months the pair were often relegated to freight workings where steam heat provision was not required.

By the late-1950s new, production series diesel locomotives were arriving en-masse and whilst their time in service had been highly educational and helped to shape the BR diesel fleet, the writing was on the wall for this pair on non-standard prototypes. No. 10000 was officially withdrawn in December 1963, whilst No. 10001 lasted to March 1966, kept going with components salvaged from its Twin. Sadly, neither was saved and both were subsequently scrapped, but their legacy carried on in the Class 40s, 50s and 56s which all used versions of the English Electric 16SVT engine and today, works is ongoing to build a replica of No. 10000.
