Scale(s): 1:87 Scale, HO Scale (NO.52®) Metal Couplers - Medium. Quality replacement plug-in coupler.

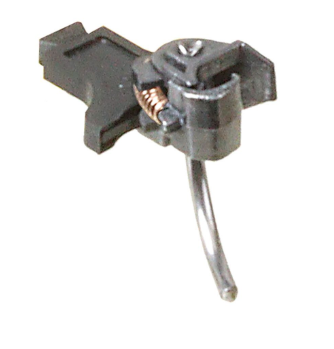

KDE52 NEM 363 European-Style Couplers Medium (8.63mm)
This coupler features an NEM 363 European Style Coupler. The #52 Magne-Matic® NEM 363 European Style Coupler has three mounting options. It can be mounted in a factory NEM-363 pocket, it can be mounted using the Kadee® NEM 363 to NEM 362 Adapter in a NEM 362 pocket, or can be mounted using the Kadee® Bolt-on NEM 363 Adapter to a flat service on the underside of the loco or car. The height of the coupler can be easily adjusted to match the Kadee coupler height gauge by sliding the couple up or down in the dovetail slot. The excess mounting adapter can be trimmed away for a cleaner look.

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

Package Includes:

(2) Pair #52 NEM 363 Couplers (Assembled) - Medium Underset
(2) Pair NEM 363 to NEM 362 Adapters
(2) Pair Bolt-on NEM 363 Adapters
(2) #622 Knuckle Springs
#52 Coupler Features:
Material - Metal Knuckle, Plastic Coupler Dovetail Shank
Shank Length - Medium (8.63mm , .340 inch , 11/32") (pulling face to the dovetail shoulder)
Coupler Offset - Underset Shank
Knuckle Spring - #622
Centering System - NEM 363 European Style Coupler
Head - Standard Head
Mounting Specifications:

Shank Length - 8.5mm , .334"
Coupler Centerline Height - 9.9mm , .390"
Trip Pin Height - .08mm , .031"
Bolt-on NEM 363 Adapter Screw size - 0-48 screws or M1.4 metric screws

WARNING: CHOKING HAZARD - Small Parts - Not for children under 14 years. Kadee Quality Products Co. products are not toys and are not intended for children under 14 years old.
