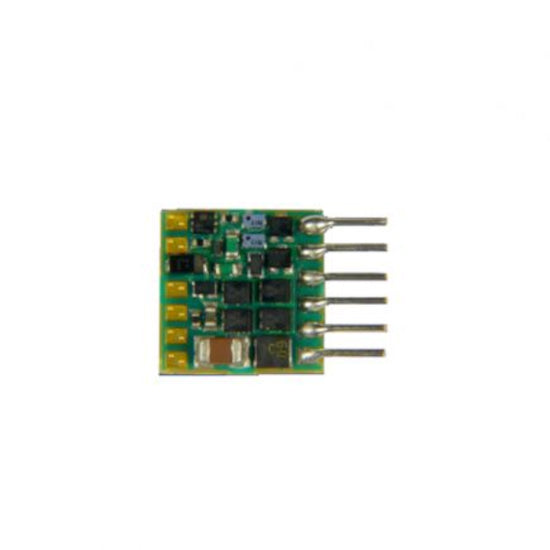

Bachmann 36-571 6 Pin Micro DCC Loco-Decoder (with Brake Button function) A 6 Pin (NEM651) DCC Decoder suitable for models fitted with a 6 Pin DCC decoder socket and where minimal space is available for the decoder, for instance the Graham Farish Class N Scale 03 and 04 Diesel Shunters and the Bachmann Narrow Gauge OO9 Scale Quarry Hunslets. Highlights include: Multi-mode (NMRA-DCC format, Motorola protocol and DC Analogue) with Back EMF function 6 powered function outputs 0.7A continuous load Suitable for models equipped with DC motors (including coreless motors) Brake Button function for realistic control of braking (operates on F2) Operating Modes Multi-mode (NMRA-DCC format, Motorola protocol and DC Analogue) with Back EMF function 14, 28 and 128 speed steps Short and Long addresses Motor Control Features Suitable for models equipped with DC motors (including coreless motors) 0.7A continuous load Variable pulse width frequency motor regulation (up to 40kHz) Motor output overload protection; Back EMF (de-selectable) Function Outputs 6 powered-function outputs with overload protection (4 outputs connect via solder pads) 500mA load per output 500mA total load of all function outputs Shunting speed and momentum key selectable Dimensions 8mm x 8mm x 2.4mm Default Address Address 3 Programming DCC Service Mode & DCC PoM (Programming on Main) Additional Features RailCom® Feedback system Upgradable firmware This decoder is manufactured on behalf of Bachmann Europe by Zimo. For full technical specifications and instructions, please refer to the Zimo user guide for MX616N at http://www.zimo.at/web2010/documents/MX-small-decoders_EN.pdf
