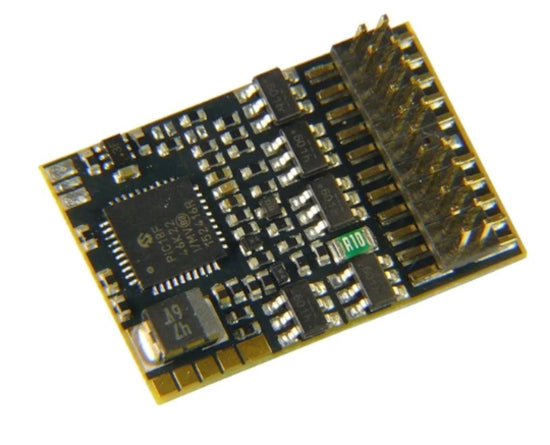

36-570A Plux22 DCC Loco-Decoder (with Brake Button function)
36-570A Plux22 DCC Loco-Decoder (with Brake Button function)
SKU: 36-570A | Vendor: Bachmann
Out of stock
Pickup available at Harburn Hobbies
- Edinburgh Out of stock
- Beer Out of stock
Full Description
Full Description
Bachmann 36-570A Plux22 DCC Loco-Decoder (with Brake Button function) A Plux22 (NEM658) DCC Decoder suitable for models fitted with a Plux22 DCC decoder socket. Highlights include: Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function 11 function outputs (9 powered and 2 logic level) 1.2A continuous load Suitable for models equipped with DC motors (including coreless motors) Brake Button function for realistic control of braking (operates on F2) Operating Modes Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin)) with Back EMF function 14, 28 and 128 speed steps Short and Long addresses Motor Control Features Suitable for models equipped with DC motors (including coreless motors) 1.2A continuous load Variable pulse width frequency motor regulation (up to 40kHz) Motor output overload protection; Back EMF (de-selectable) Function Outputs 9 powered-function outputs with overload protection 800mA load per output 800mA total load of all function outputs 2 additional logic level outputs Shunting speed and momentum key selectable Dimensions 22mm x 15mm x 3.5mm Programming DCC Service Mode & DCC PoM (Programming on Main) Additional Features RailCom® Feedback system Capacitor connections Upgradable firmware This decoder is manufactured on behalf of Bachmann Europe by Zimo. For full technical specifications and instructions, please refer to the Zimo user guide for MX633P22 at www.zimo.at/web2010/documents/MX-KleineDecoder_E.pdf
