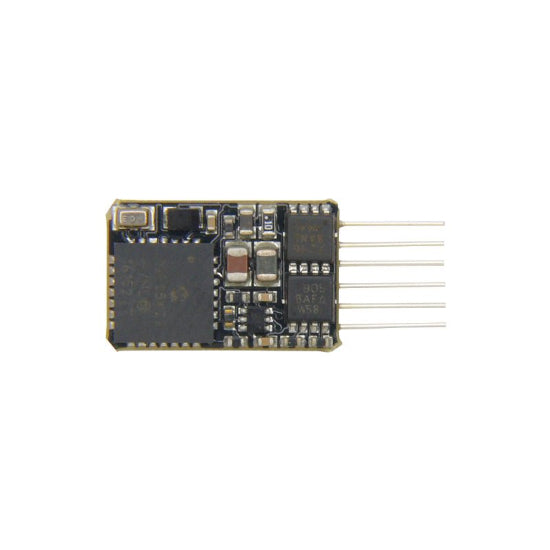

Bachmann 36-568A NEM 651 6-Pin Loco-Decoder
A 6 Pin (NEM651) DCC Decoder suitable for models fitted with a 6 Pin DCC decoder socket (do not use with the Graham Farish 3F ‘Jinty’ and Class 64XX Pannier Tank , use 36-556RA with these models).
Highlights include:
Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin) with Back EMF function
4 powered function outputs (+2 logic level/SUSI outputs)
0.8A continuous load
Suitable for models equipped with DC motors (including coreless motors)
Brake Button function for realistic control of braking (operates on F2)
Operating Modes
Multi-mode (NMRA-DCC format, Motorola protocol, DC Analogue and AC Analogue (Marklin) with Back EMF function
14, 28 and 128 speed steps
Short and Long addresses
Motor Control Features
Suitable for models equipped with DC motors (including coreless motors)
0.8A continuous load
Variable pulse width frequency motor regulation (up to 40kHz)
Motor output overload protection; Back EMF (de-selectable)
Function Outputs
4 powered-function outputs with overload protection (2 outputs connect via solder pads)
500mA load per output
500mA total load of all function outputs
2 additional logic level or SUSI outputs
Shunting speed and momentum key selectable
Dimensions
14mm x 9mm x 2.5mm
Default Address
Address 3
Programming
DCC Service Mode & DCC PoM (Programming on Main)
Additional Features
RailCom® Feedback system
Upgradable firmware
