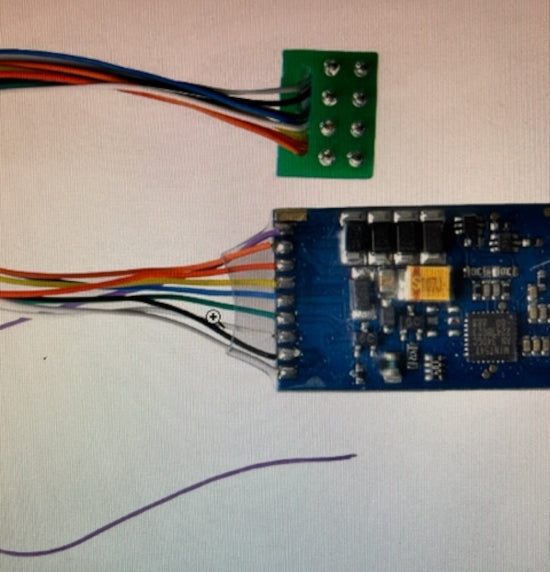

Bachmann 36-566A 8 Pin DCC Loco Decoder (with Brake Button function) A 8 Pin (NEM652) DCC Decoder suitable for models fitted with a 8 Pin DCC decoder socket. This decoder replaces item No. 36-566 and can be used in any model for which item No. 36-566 is recommended Highlights include: Dual-mode DCC/DC decoder with Back EMF function 4 powered function outputs 0.9A continuous load RailComPlus® for automatic registration when used with selected DCC systems Suitable for models equipped with DC motors (including coreless motors) Operating Modes NMRA/DCC with 14, 28 and 128 speed steps Short and Long addresses DCC and DC operation (DC operation is de-selectable) Automatic recognition of operational mode and DCC speed step selection Supports Lenz® LG 100 braking sections Supports ABC braking sections Motor Control Features Suitable for models equipped with DC motors (including coreless motors) 0.9A continuous load Motor regulation with pulse width frequency from 10kHz to 50kHz Motor output overload protection; Back EMF (de-selectable) Function Outputs 4 powered-function outputs with overload protection 250mA load per output 500mA total load of all function outputs Shunting speed and momentum key selectable Brake Button function for realistic control of braking (operates on F2) Dimensions 25.5mm x 15.5mm x 4.5mm (+ wiring harness)Default Address Address 3 Programming DCC Service Mode & DCC PoM (Programming on Main) Additional Features RailCom® Feedback system
